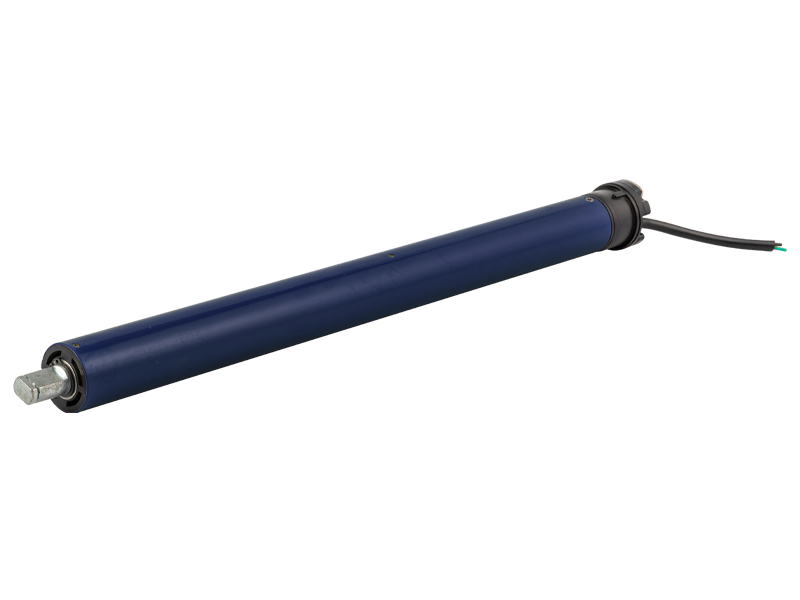

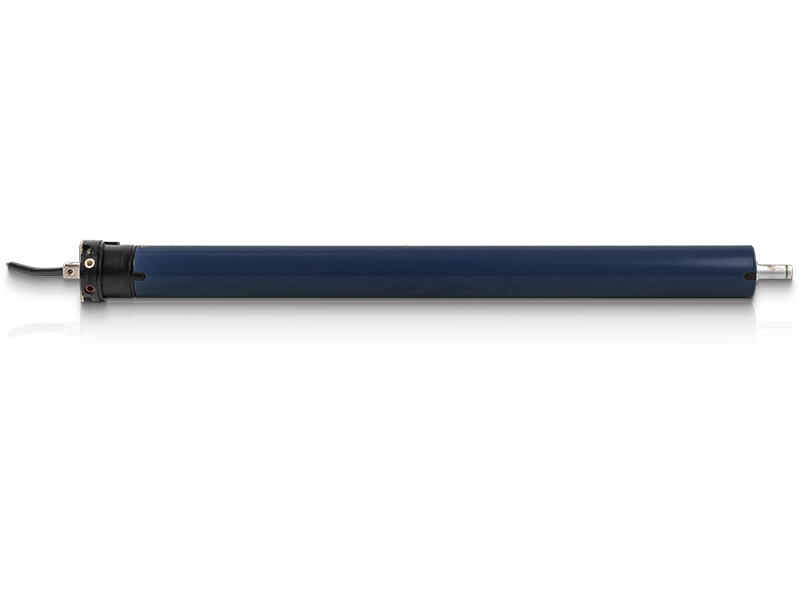

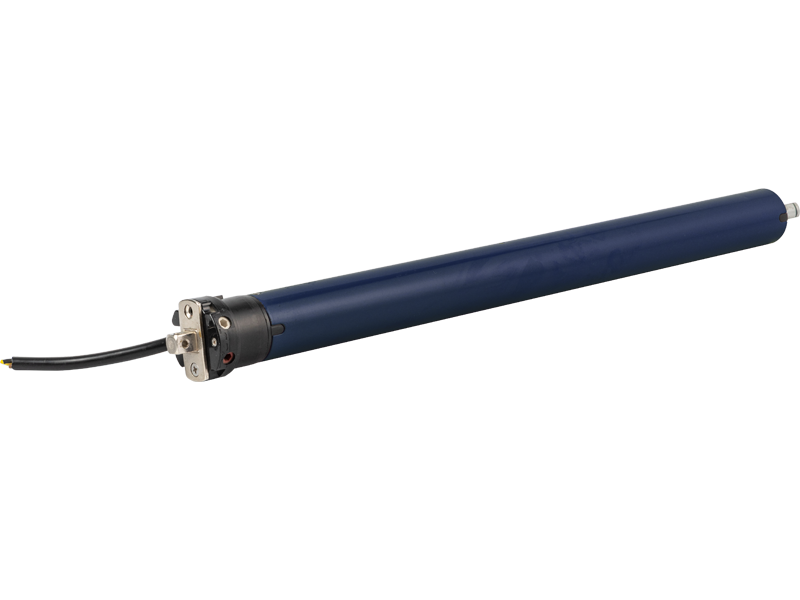

custom ZT35S Range - 35MM Standard Type Tubular Motor

ZT35S Range - Standard Type  Product Certificate
Motor Type Rated Torque Rated Speed Tube Diameter Rated Power Input Rated Current Running Time Max Number of Turns L1/L2
N.m rpm mm W A min Turn mm
230V/50Hz - lp44
ZT35S-3/28 3 28 35 98 0.43 4 37 445/432
ZT35S-6/14 6 14 35 98 0.43 4 37 445/432
ZT35S-6/28 6 28 35 139 0.60 4 37 445/432
ZT35S-10/17 10 17 35 139 0.60 4 37 445/432
ZT35S-13/14 13 14 35 139 0.60 4 37 445/432
120V/60Hz - lp44
ZT35S-3/33 3 33 35 101 0.84 4 37 485/472
ZT35S-6/17 6 17 35 101 0.84 4 37 485/472
ZT35S-6/33 6 33 35 128 1.06 4 37 485/472
ZT35S-10/21 10 21 35 128 1.06 4 37 485/472
ZT35S-13/15 13 15 35 128 1.06 4 37 485/472

MENU

Ningbo Zonglan Intelligent Technology Co., Ltd.

Zonglan tubular motor and remote controller system can be widely used for Automatic Roller Blinds, Automatic Venetian Blinds, Automatic Roller Shutter, Automatic Awning, Automatic Roller Door, Automatic Clothes Pole, Automatic Projection Screen. We are professional China ZT35S Range - 35MM Standard Type Tubular Motor suppliers and OEM ZT35S Range - 35MM Standard Type Tubular Motor company. Our products play the role of natural lighting, heating and cooling, and natural ventilation in the construction field, and have been widely used in office buildings, shopping malls, and high-end residential quarters.
