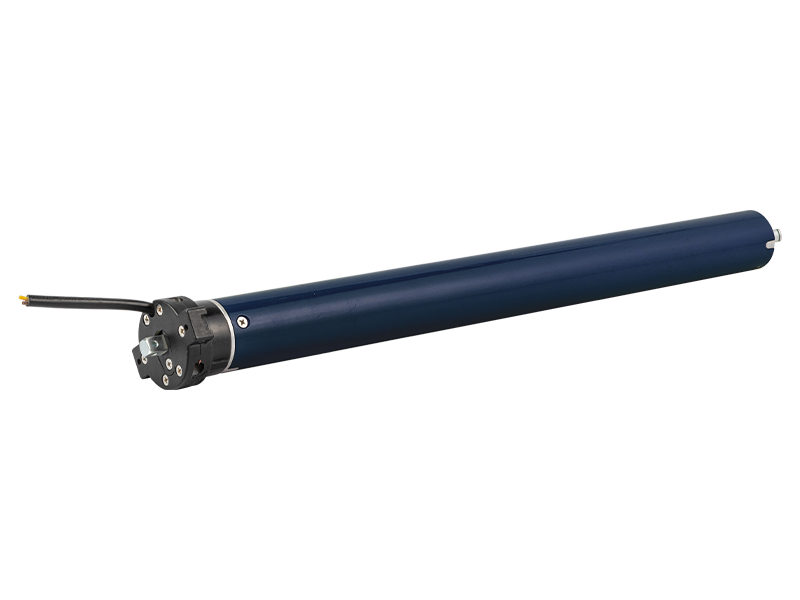

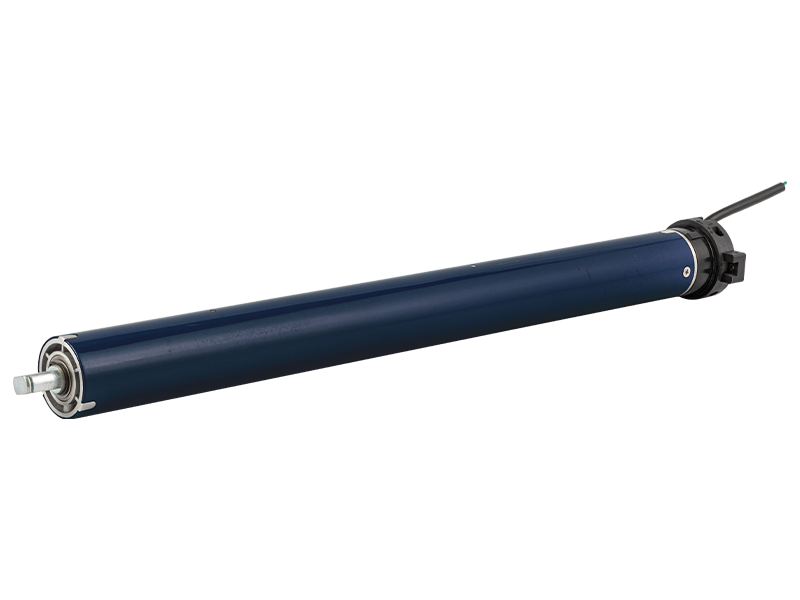

ZT45S Range - Standard Type 45MM Tubular Motor

S: Standard

Mechanic Limit
share:
Inquiry
Download PDF

Download

Download

Download

Download
Applications

lnner Structure Picture

Dimension Drawing

ZT45S Range - Standard Type							Product Certificate
Motor Type	Rated Torque	Rated Speed	Tube Diameter	Rated Power Input	Rated Current	Running Time	Max Number of Turns	L1/L2
	N.m	rpm	mm	w	A	min	Turn	mm
230V/50HZ-Ip44
ZT45S-10/15	10	15	45	125	0.54	4	22	444/428
ZT45S-10/26	10	26	45	153	0.68	4	45	514/498
ZT45S-20/15	20	15	45	153	0.68	4	22	444/428
ZT45S-20/26	20	26	45	215	0.95	4	45	564/548
ZT45S-30/15	30	15	45	205	0.93	4	22	514/498
ZT45S-40/15	40	15	45	215	0.95	4	22	514/498
ZT45S-50/12	50	12	45	230	1.02	4	22	514/498
ZT45S-60/8	60	8	45	238	1.04	4	22	514/498
120V/60Hz-lp44
ZT45S-10/19	10	19	45	131	1.09	4	22	486/470
ZT45S-10/32	10	32	45	160	1.33	4	45	516/500
ZT45S-20/19	20	19	45	214	1.85	4	22	486/470
ZT45S-20/32	20	32	45	243	2.02	4	45	566/550
ZT45S-30/13	30	13	45	213	1.83	4	22	536/520
ZT45S-40/13	40	13	45	235	1.95	4	22	536/520
ZT45S-50/13	50	13	45	270	2.3	4	22	536/520

MENU

Ningbo Zonglan Intelligent Technology Co., Ltd.

Zonglan tubular motor and remote controller system can be widely used for Automatic Roller Blinds, Automatic Venetian Blinds, Automatic Roller Shutter, Automatic Awning, Automatic Roller Door, Automatic Clothes Pole, Automatic Projection Screen. We are professional China ZT45S Range - Standard Type 45MM Tubular Motor suppliers and OEM ZT45S Range - Standard Type 45MM Tubular Motor company. Our products play the role of natural lighting, heating and cooling, and natural ventilation in the construction field, and have been widely used in office buildings, shopping malls, and high-end residential quarters.
