Custom ZT45E Range - 45MM Electronic Radio Type Tubular Motor Suppliers, Company - Ningbo Zonglan Intelligent Technology Co., Ltd

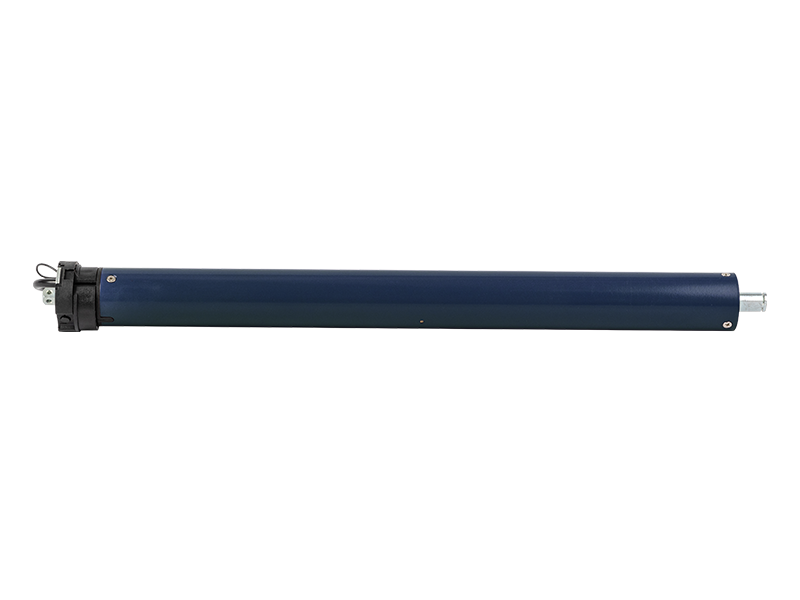

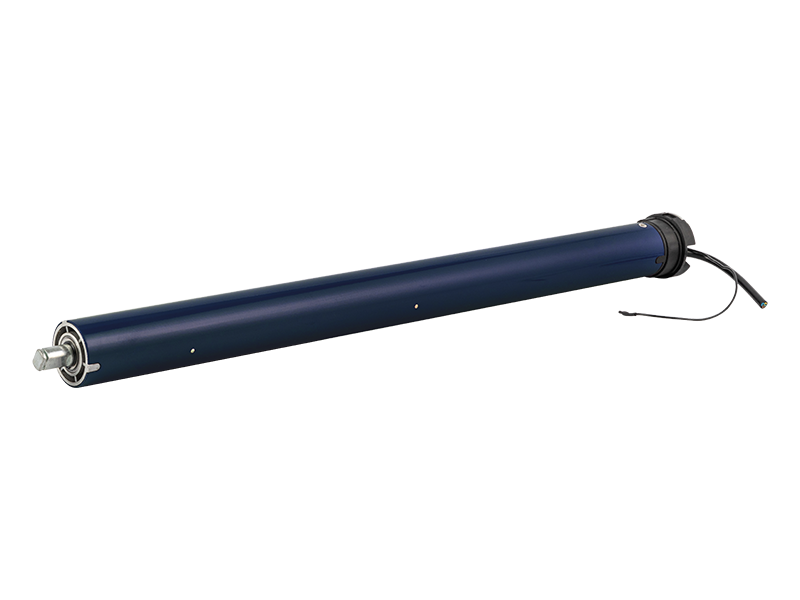

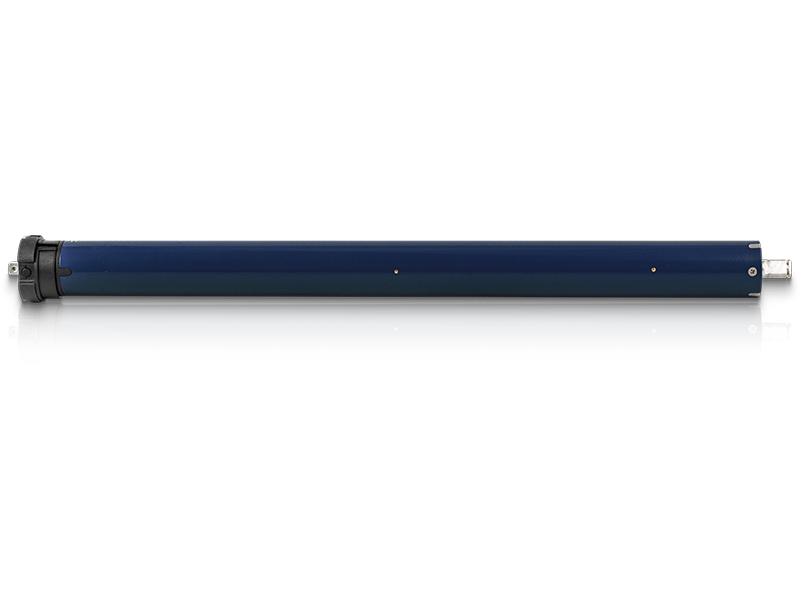

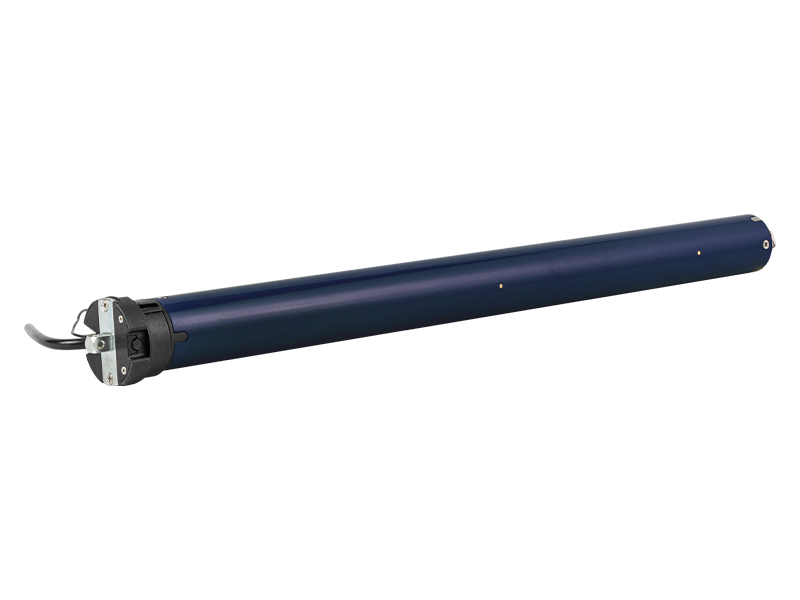

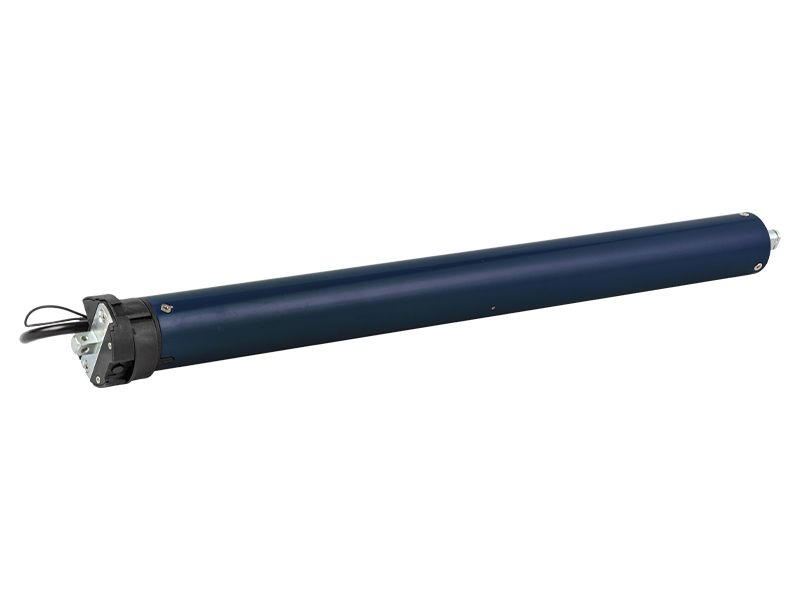

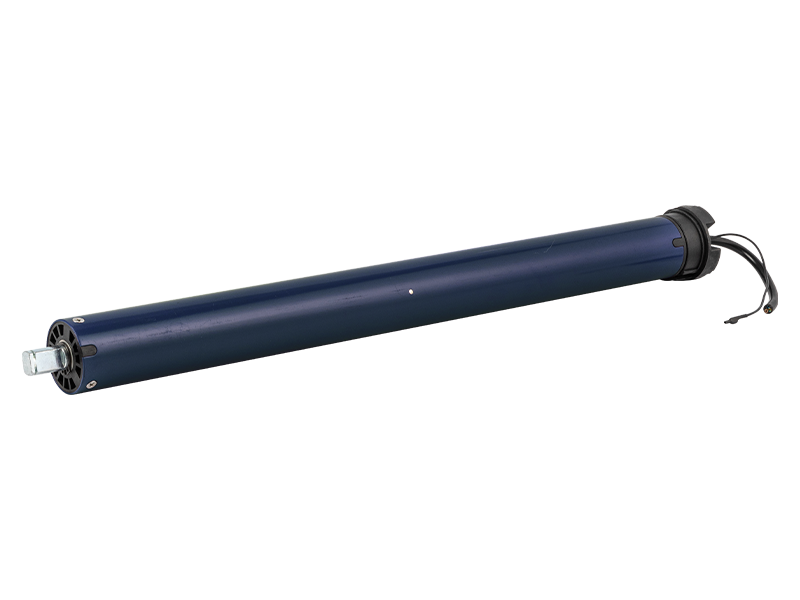

ZT45E Range - 45MM Electronic Radio Type Tubular Motor

E: Electronic Radio

Electronic Limit + Built-in Wireless Receiver + The Third Limit + Jogging ＆ Tilt Function + Resistance And Stop Function
share:
Inquiry
Download PDF

Download

Download

Download

Download
Applications

lnner Structure Picture

Dimension Drawing

ZT45E Range - Electronic Radio Type							Product Certificate
Motor Type	Rated Torque	Rated Speed	Tube Diameter	Rated Power Input	Rated Current	Running Time	Max Number of Turns	L1/L2
	N.m	rpm	mm	W	A	min	Turn	mm
230V/50HZ-Ip44
ZT45E-10/15	10	15	45	125	0.54	4	∞	514/498
ZT45E-10/26	10	26	45	153	0.68	4	∞	514/498
ZT45E-20/15	20	15	45	153	0.68	4	∞	514/498
ZT45E-20/26	20	26	45	215	0.95	4	∞	584/568
ZT45E-30/15	30	15	45	205	0.93	4	∞	584/568
ZT45E-40/15	40	15	45	215	0.95	4	∞	630/621
ZT45E-50/12	50	12	45	230	1.02	4	∞	630/621
ZT45E-60/8	60	8	45	238	1.04	4	∞	630/621
120V/60HZ-Ip44
ZT45E-10/19	10	19	45	131	1.09	4	∞	514/498
ZT45E-10/32	10	32	45	160	1.33	4	∞	514/498
ZT45E-20/19	20	19	45	214	1.85	4	∞	514/498
ZT45E-20/32	20	32	45	243	2.02	4	∞	584/568
ZT45E-30/13	30	13	45	213	1.83	4	∞	584/568
ZT45E-40/13	40	13	45	235	1.95	4	∞	630/621
ZT45E-50/13	50	13	45	270	2.3	4	∞	630/621

MENU

Ningbo Zonglan Intelligent Technology Co., Ltd.

Zonglan tubular motor and remote controller system can be widely used for Automatic Roller Blinds, Automatic Venetian Blinds, Automatic Roller Shutter, Automatic Awning, Automatic Roller Door, Automatic Clothes Pole, Automatic Projection Screen. We are professional China ZT45E Range - 45MM Electronic Radio Type Tubular Motor suppliers and OEM ZT45E Range - 45MM Electronic Radio Type Tubular Motor company. Our products play the role of natural lighting, heating and cooling, and natural ventilation in the construction field, and have been widely used in office buildings, shopping malls, and high-end residential quarters.
