Home / Products / 92MM Tubular Motor / ZT92M Range - 92MM Manual Type Tubular Motor

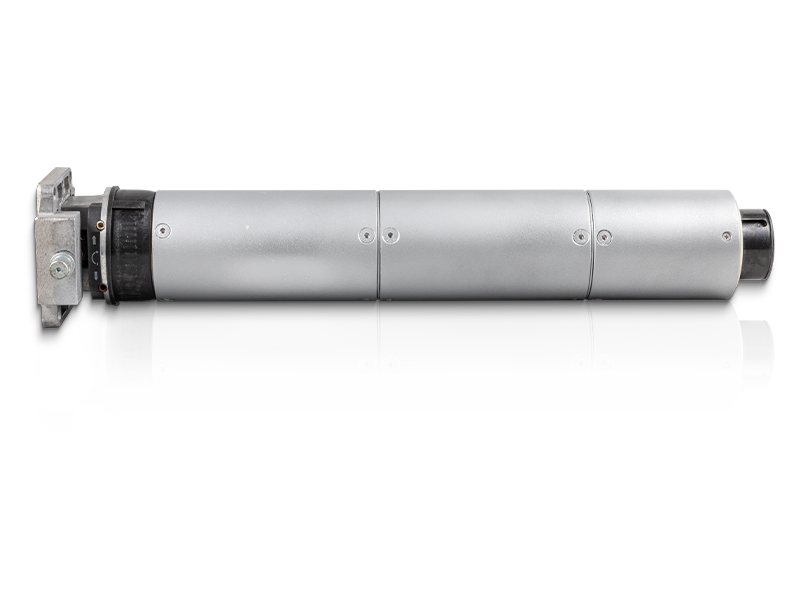

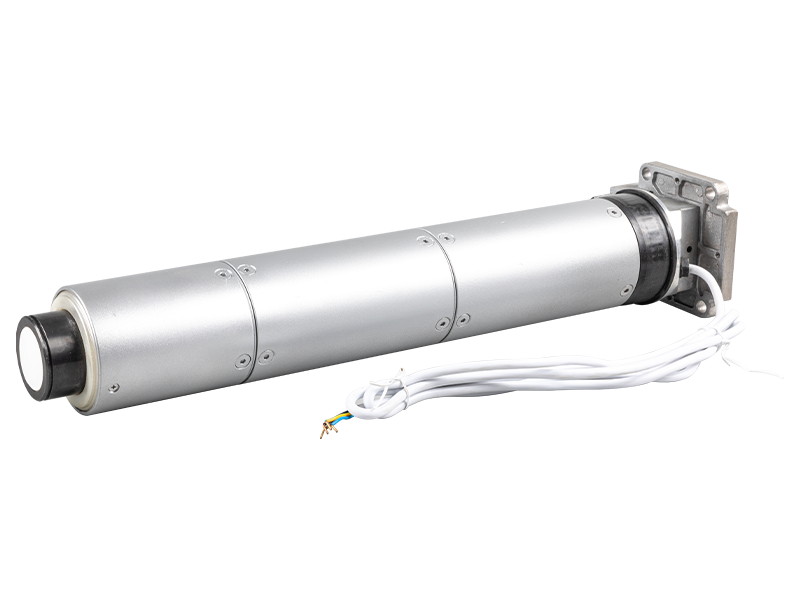

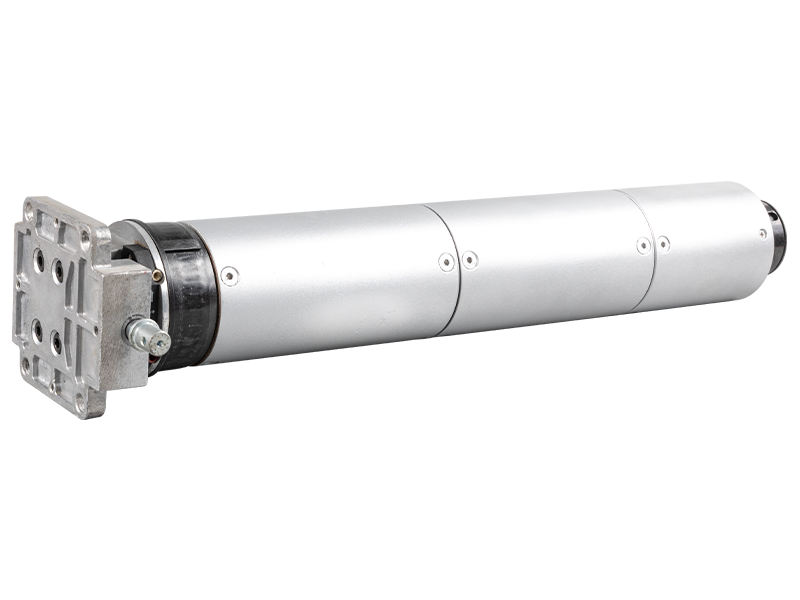

custom ZT92M Range - 92MM Manual Type Tubular Motor

ZT92M Range - Manual Type Product Certificate
Motor Type Rated Torque Rated Speed Tube Diameter Rated Power Input Rated Current Running Time Max Number of Turns L1/L2
N.m rpm mm w A min Turn mm
230V/50Hz - lp44
ZT92M-230/12 230 12 92 1027 4.75 4 22 490/478
ZT92M-300/9 300 9 92 1027 4.75 4 22 526/514
120V/6OHz - lp44
ZT92M-230/14 230 14 92 881 8.17 4 22 532/520
ZT92M-300/11 300 11 92 881 8.17 4 22 568/556
